RC-USB Interface V3.0 for RC Simulator Game.
Interface RC signal 1-9ch translate to Joystick-USB 8 axis, 8 button
and keyboard-USB.
You can use your
RC Remote as Windows Joystick-USB and Keyboard-USB
Support OS: Windows XP/2000 NO DRIVER Require
Support Game: All windows game that can use JOYSTICK.
PPM signal: 1-9ch RC PPM Interface
for DSC (Direct Servo Control)
or Trainer Port.
Servo signal: 1-6ch RC Receiver Interface
for AM, FM, FM-PCM,
FM-HRS RC receiver.

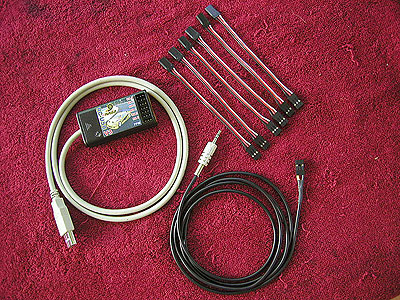

RC-USB Interface Kit
- 1 set RC-USB unit with USB cable.
- 1 set RCUSB-3.5MM cable for DSC/Trainer Port 3PK, M8, JR.
- 6 set Servo-cable for RC Receiver.
- 1 set CDROM include Manual, RC-USB TX Channel Manager
and some RC Game Demo.

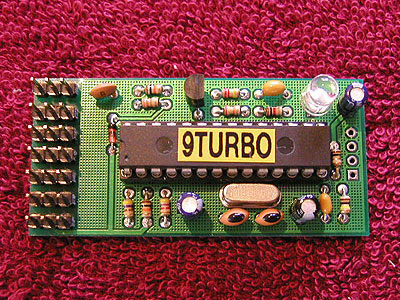

High Quality PCB (Printed Circuit Board). Special design for RF circuit.

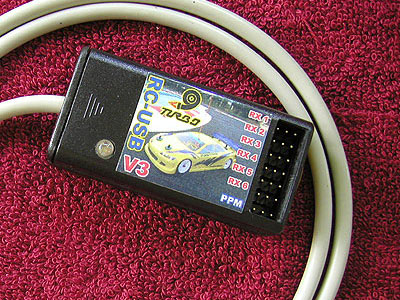

Pin Out
RX1 - RX6 : [S] [+] [-] = [White] [Red] [Black] for RC receiver
PPM 1-9 CH: [S] [ ] [-] = [Yellow] [ ] [Black] for PPM signal

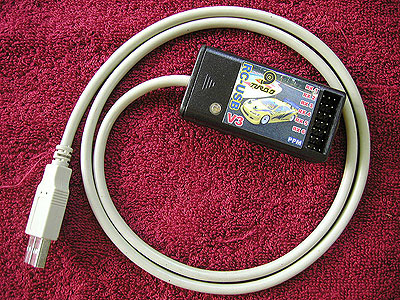

RC-USB Interface. Plug and Play for windows XP/2000
No Driver require.
RC-USB V3 can get RC signal, both DSC port or receiver unit.
Then translate RC signal to Joystick USB and keyboard USB,
each channel-define can reprogramable.

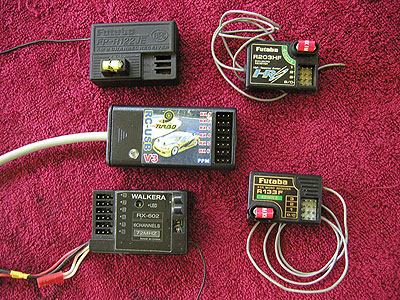

RC-USB V3 can support RC receiver 2-6ch.
AM FM FM-PCM FM-HRS receiver and WALKERA.
RC-USB Interface with RCUSB-3.5MM cable
For use with DSC / Trainer Port of Remote 3PK, M8, JR
RC receiver use supply from RC-USB Interface.
So your RC Receiver NO NEED for External Battery.

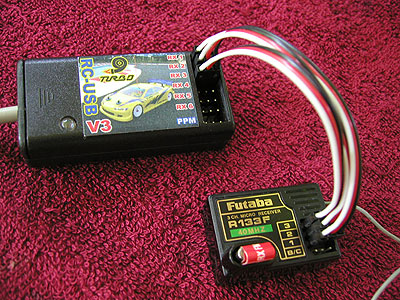

Just PLUG servo-cable to your receiver. it prompt to use.
Note: Please careful about connector polarity. if wrong, Unit can damage.

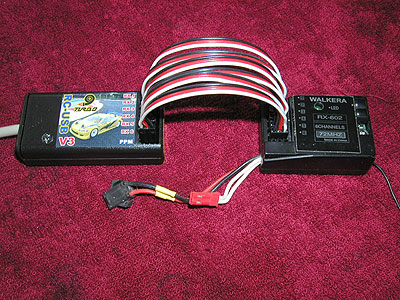

RC-USB V3 with walkera 6ch receiver.
Just PLUG servo-cable to your receiver. it prompt to use.
NO NEED for External Battery or supply.

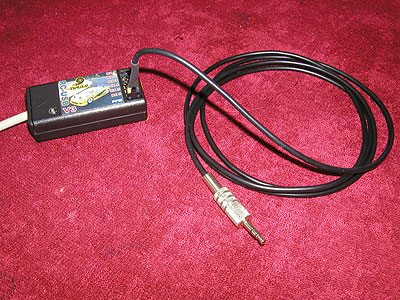

PPM-Cable ( RCUSB-3.5MM cable )
[S] [ ] [-] = [yellow] [ ] [Black]
S is Signal, - is Ground.

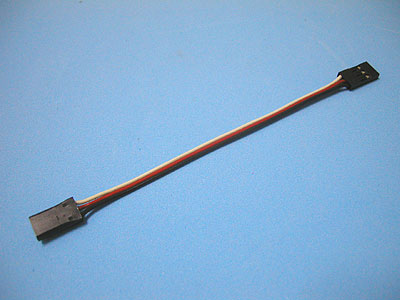

Servo-Cable
[S] [+] [-] = [White] [Red] [Black]
Use this cable when you want to connect RC-USB with RC receiver.

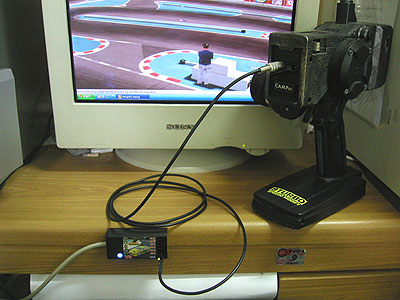

RC-USB Interface with RCUSB-3.5MM cable connect to FUTABA 3PK DSC Port.
RC-USB Interface use with Wakera 6CH CCPM.
(RC-USB Interface can support CCPM of Walkera Remote.)

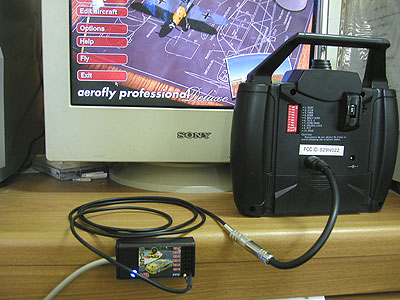

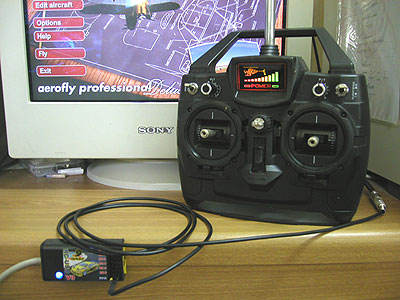

RC-USB Interface with RCUSB-3.5MM and RCUSB-DIN4-Walkera cable
connect to Walkera trainer port.
RC-USB DSC/Trainer Cable Set >>> Click Here for detail <<<
Free 1 Trainer Cable Set ... (Please Select)
RCUSB-DIN6-Futaba-FM, or RCUSB-DIN5-Airtronics, or RCUSB-DIN4-Walkera
