RC-USB Interface V3.0 for RC Simulator Game.
Interface RC signal 1-9ch to Joystick-USB 8 axis, 8 button and Keyboard-USB
You can use your RC Remote as Windows USB-Joystick.
Support OS: Windows XP/2000 NO DRIVER Require
Support Game: All windows game that can use JOYSTICK.

PPM signal: 1-9ch RC PPM Interface for DSC (Direct Servo Control)
or Trainer Port.

Servo signal: 1-6ch RC Receiver Interface for AM, FM, FM-PCM,
FM-HRS RC receiver.







RC-USB Interface Calibration

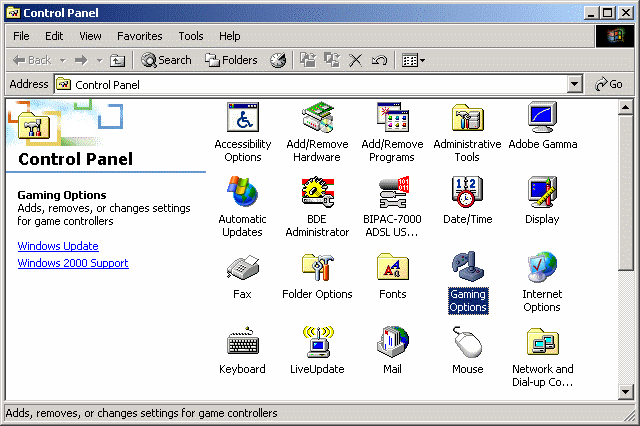

Press >> Start >> Settings >> Control Panel


Press >> Gaming Options

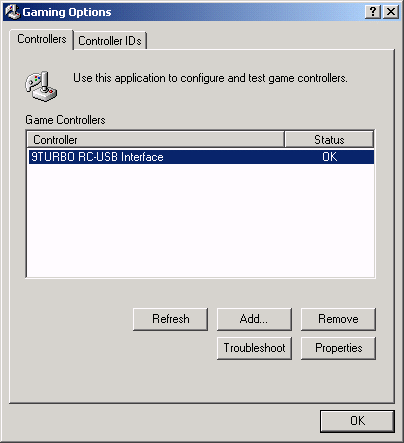

Press >> Properties

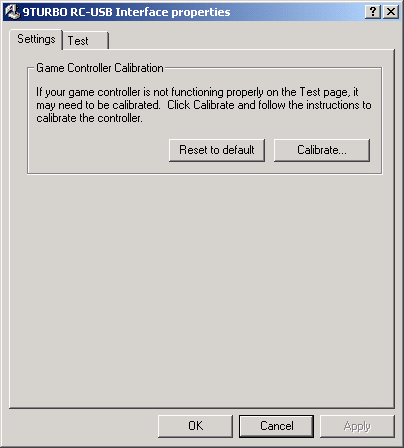

Press >> Settings

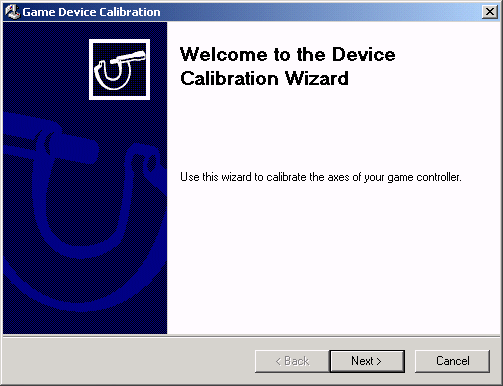

Press >> Calibrate...


Press >> Next

Center your Joystick ... Press >> Next

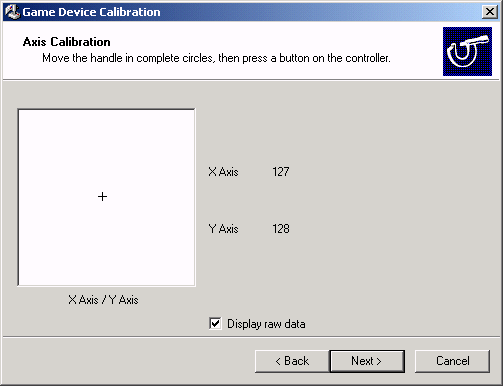

Movement your Radio Control Stick: X Axis and Y Axis in complete circles several times.
(you defined with RC-USB TX Channel Manager)
Press >> Next

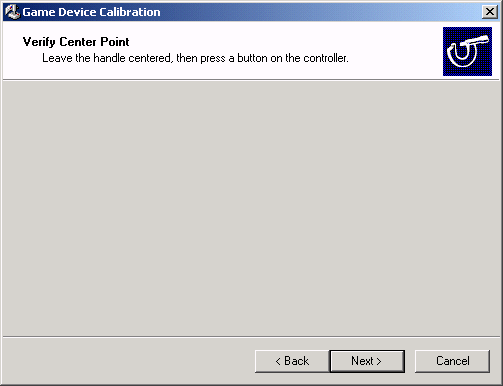

Center X Axis, Y Axis, Press >> Next

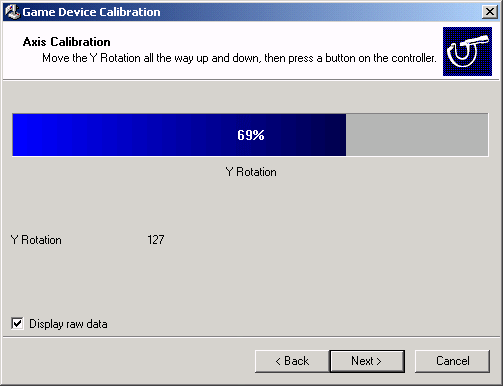

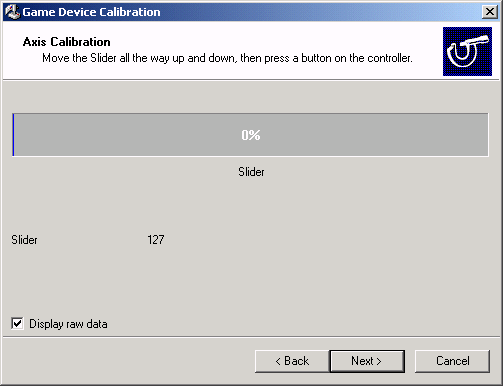

Calibrate for Axis Z, Rx, Ry, Rz, Dial, Slider
If you have TX channel defined with that AXIS, Full movement your defined TX Stick several times. Press >> Next
If you not have TX channel defined with that AXIS, Just Press >> Next




Test you calibration by movement your TX Stick each channel.
If good. press >> Apply >> OK
If not good. Try to calibrate again. press >> Setting >> Calibrate

RC-USB Interface V3.0 Kit Price : $70 USD
Free 1 Trainer Cable Set ... (Please Select)
RCUSB-DIN6-Futaba-FM, or RCUSB-DIN5-Airtronics, or RCUSB-DIN4-Walkera


EMS International Fee: $30 USD

E-mail: smith@9turbo.com
