RC-USB Interface
V2.0 for RC Simulator Game.
Interface RC signal 1-9ch to USB-Joystick 8 axis, 8 button
You can use your RC Remote as Windows USB-Joystick.
Support OS: Windows XP/2000 NO DRIVER Require
Support Game: All windows game that can use JOYSTICK.
PPM signal: 1-9ch RC PPM Interface
for DSC (Direct Servo Control)
or Trainer Port.
Servo signal: 1-4ch RC Receiver Interface
for AM, FM, FM-PCM,
FM-HRS RC receiver.

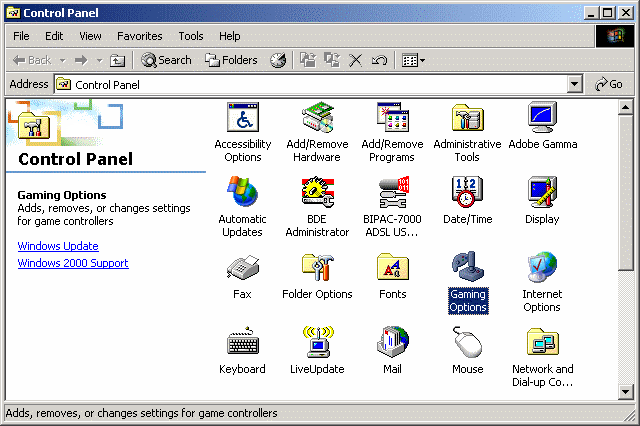

Press >> Start >> Settings >> Control Panel

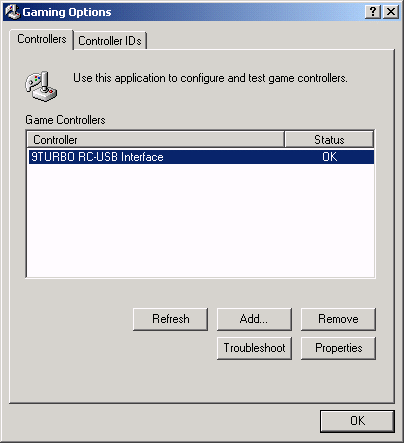

Press >> Gaming Options
Press >> Properties

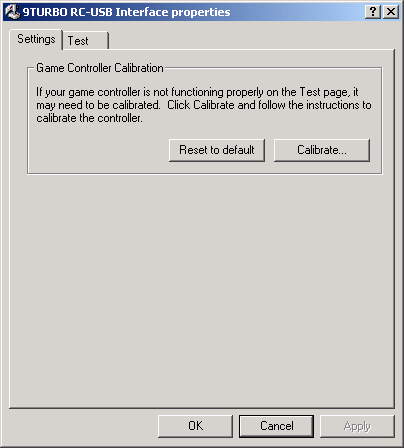

Press >> Settings

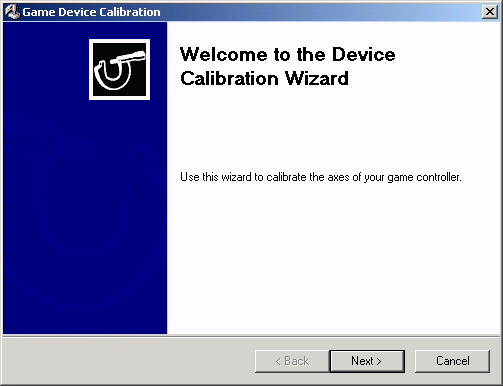

Press >> Calibrate...
Press >> Next

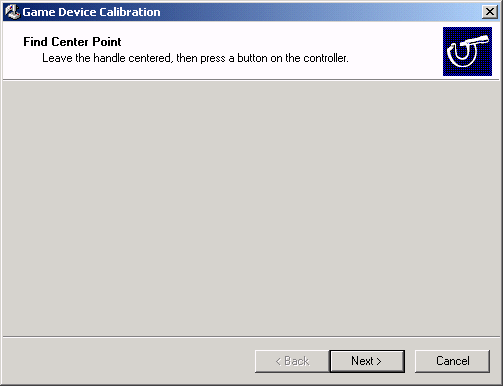

Center your Joystick ... Press >> Next

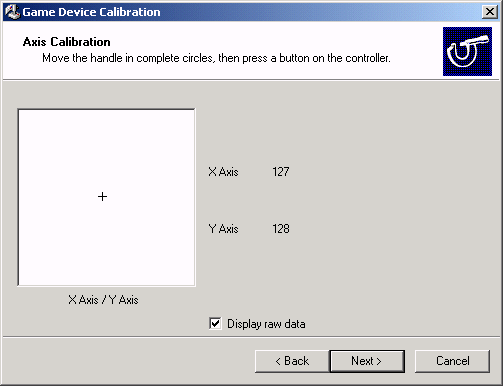

Movement your Radio Control Stick: X Axis and Y Axis in complete circles several times.
(you defined with RC-USB TX Channel Manager)
Press >> Next
Center X Axis, Y Axis, Press >> Next

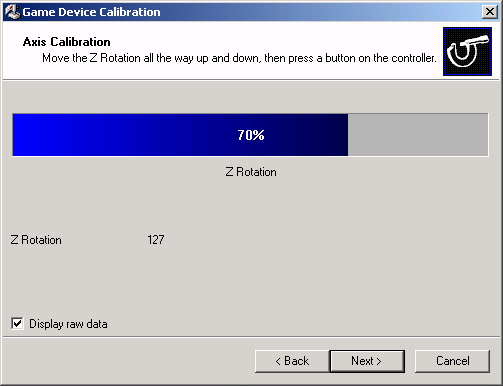

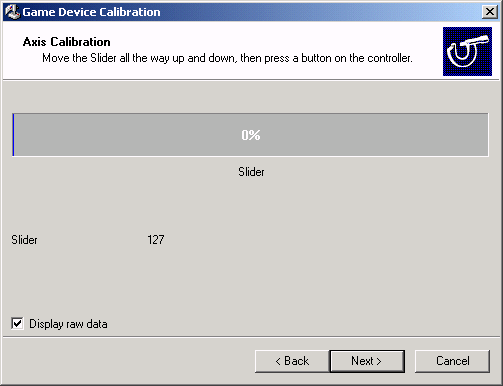

Calibrate for Axis Z, Rx, Ry, Rz, Dial, Slider
If you have TX channel defined with that AXIS, Full movement your defined TX Stick several times. Press >> Next
If you not have TX channel defined with that AXIS, Just Press >> Next
Test you calibration by movement your TX Stick each channel.
If good. press >> Apply >> OK
If not good. Try to calibrate again. press >> Setting >> Calibrate
RC-USB
Interface V2.0 Kit Price : $55 USD
EMS International Fee: $20 USD
EMS International Fee: $20 USD
Mr.Smith Vorapatratorn
9TURBO MODIFY [ http://9turbo.com ]
Chiangrai, THAILAND
E-mail:
smith@9turbo.com
