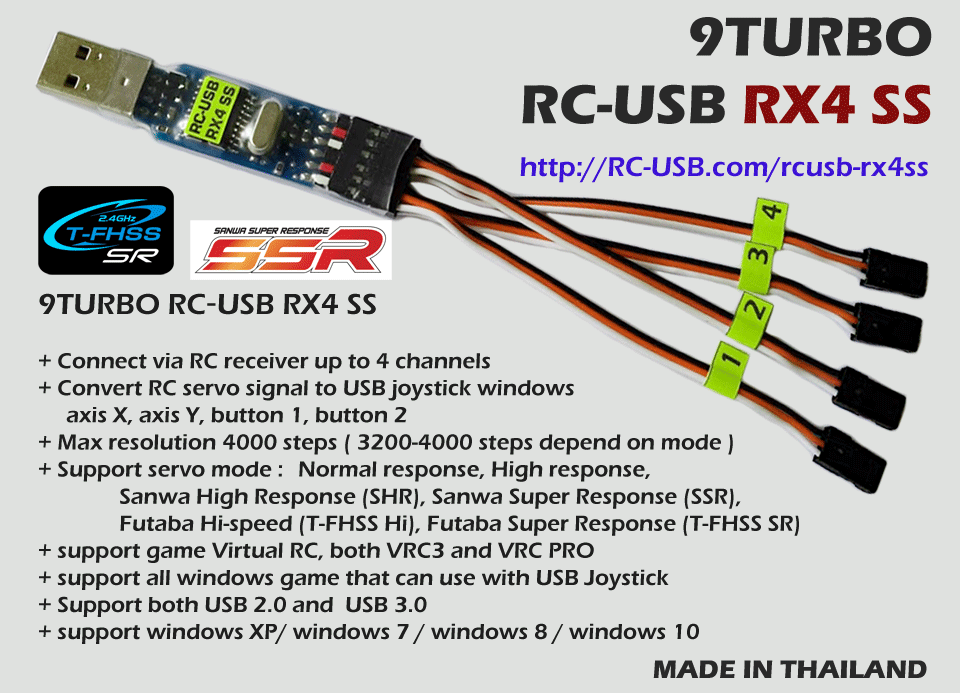

9TURBO RC-USB RX4 SS (June 2019)

RX4-SS have auto detect servo mode ...
Sanwa Normal Response(NOR), Sanwa High Response(SHR), Sanwa Super Response (SSR),
Futaba High Response(HRS), Futaba Hi-Speed (T-FHSS-HI), Futaba Super Response (T-FHSS-SR)
and for other brand ... Normal response and High response

RX4-SS will do auto detect servo mode each time that it plug in to USB port.
So, After you change servo mode of your transmitter and RE-BIND already,
you must plug out RX4-SS from USB port for a moment then plug it to USB port again.
For let RX4-SS detect all RX signal for know servo mode again.

*** TH TYPE 50:50 is very important for RX4-SS servo mode detection ***
So, you must set TH TYPE of your transmitter to 50:50, not 70:30

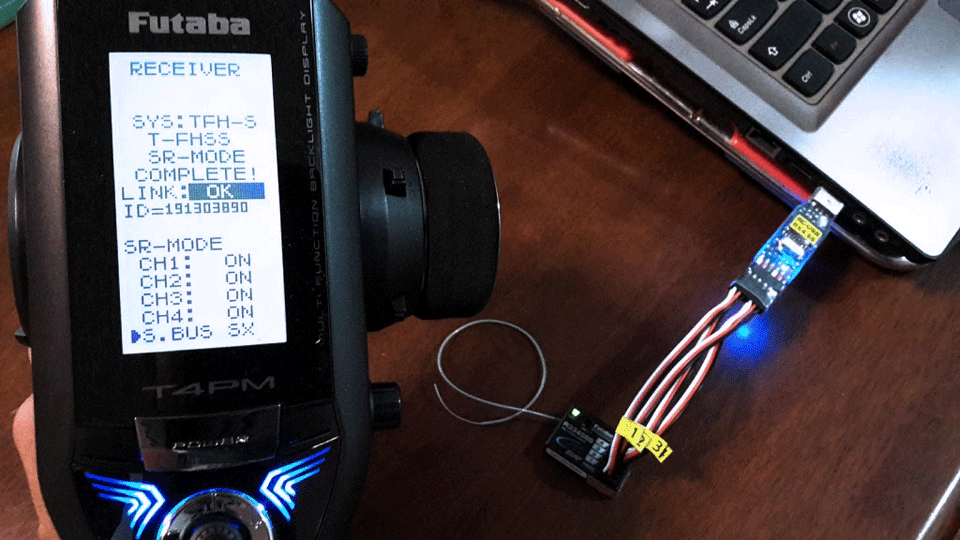

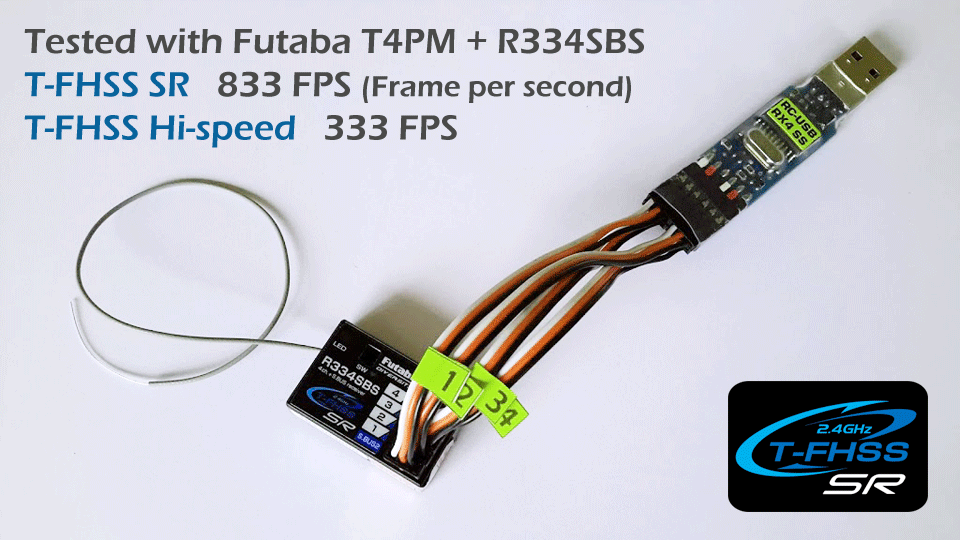

Tested with Futaba T4PM + R334SBS mode T-FHSS-SR (Super Response)
and with setting deadzone to zero in VRC Pro. Let see it performance ...

Recommend: TRANSMITTER SETTING before do joystick calibration
+ Switch on your transmitter only in "POWER" mode.
+ Transmitter: set servo mode as you want, Normal, High response, Sanwa SR (SSR) , Futaba SR (T-FHSS SR)
+ ST-EPA(ch1) Futaba set to 120% , Sanwa set to 150% or Maximum
+ ST-TRIM(ch1) set to 0
+ TH-EPA(ch2) Futaba set to 120% , Sanwa set to 150% or Maximum
+ TH-TRIM(ch2) set to 0
+ FAIL-SAFE set to INH or OFF.
+ ABS OFF (you can set ABS ON after joystick calibrate finished).
+ D/R and ATL set to 100% (you can adjust to your prefer,after joystick calibrate finished).
+ if your transmitter can set forward side/ reverse side ratio, should set it to FWD50/REV50 (this is not EPA, it is throttle side ratio).

See how to setting and calibrate 9TURBO RC-USB RX4-SS

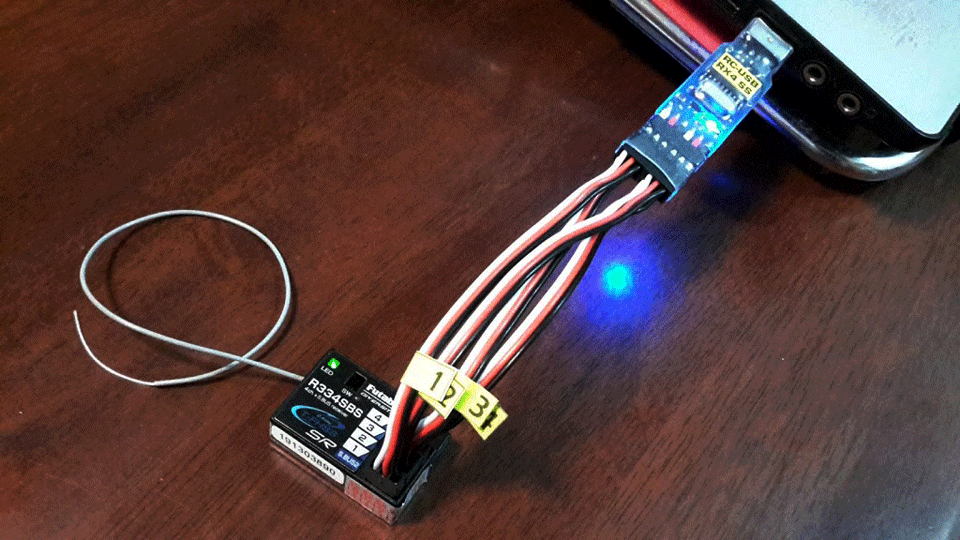

RC-USB RX4 SS must connect with receiver already, before plug it to USB port.
when first plug in 9TURBO RCUSB-RX4 to your computer.
windows will automatic install internal USB driver to this device.
please wait until internal USB driver installation success, then do joystick calibration.
Joystick calibration => [Click Here]

PayPal accept, shipment by Registered Air-Mail with tracking number.
if you want to order. please goto 9TURBO.com/shop for buy this item online. => 9TURBO Shop online [click here].

Production by 9TURBO, Thailand
