9TURBO RCUSB-RX3

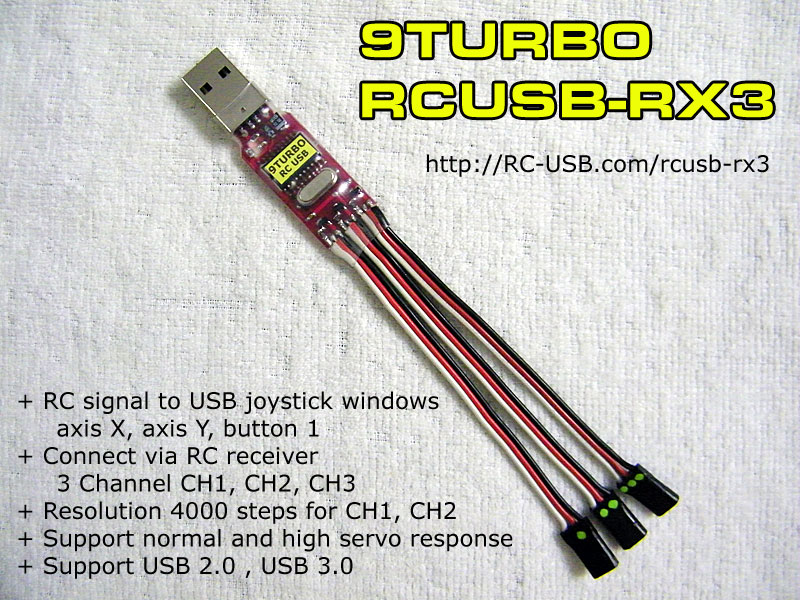

9TURBO RCUSB-RX3 for RC Simulator Games.
+ RC servo signal to USB-Joystick windows axis-X, axis-Y, button-1
+ connect via RC receiver, support AM, FM, FM-PCM, FM-HRS , 2.4G both normal and high servo response
+ input 3 channel CH1, CH2, CH3
+ high resolution up to 4000 step for CH1, CH2
+ you can use your RC Tramsmitter with Receiver as Windows Joystick-USB for play RC Simulator games
+ support Virtual RC simulator botn VRC3 and VRC PRO
+ support OS: Windows XP/2000 /Windows 7 /Windows 8 ,NO external driver require
+ support Game: All windows game that can use USB-JOYSTICK.

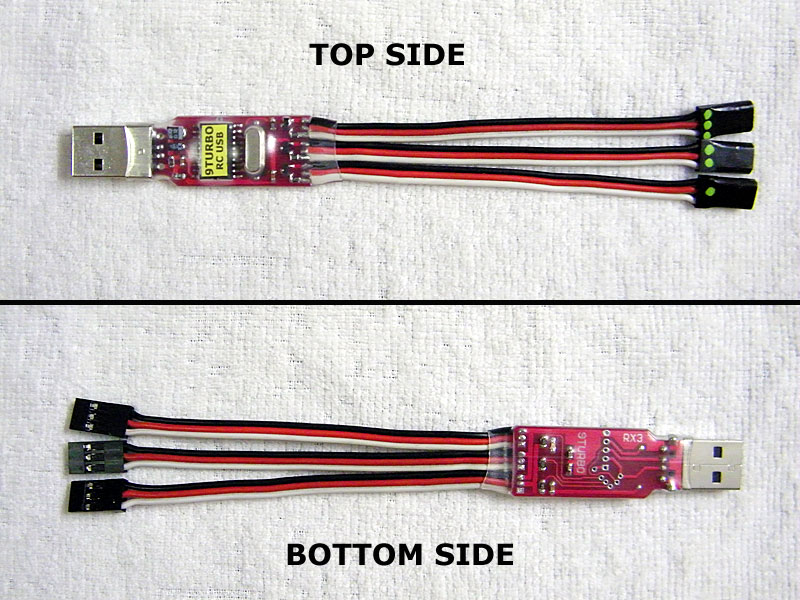

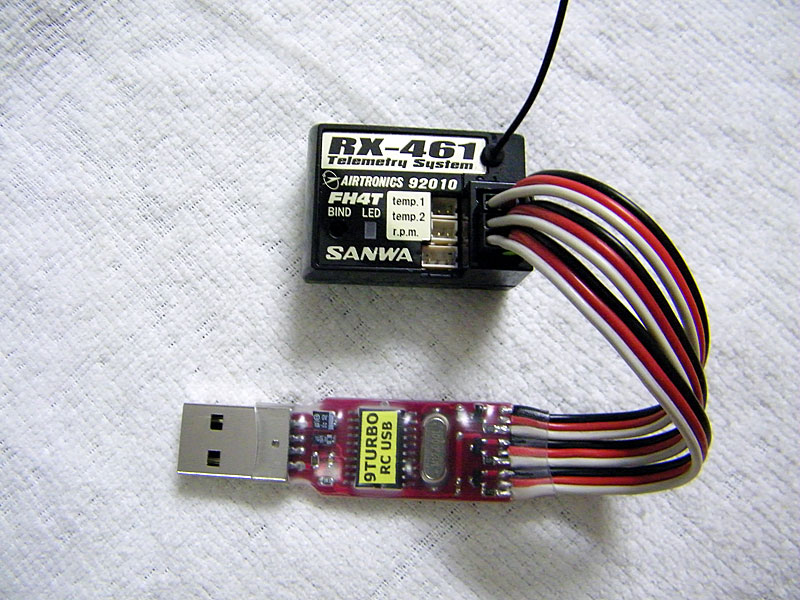

RCUSB-RX3 connect to receiver. 1 dot = CH1, 2 dots = CH2, 3 dots = CH3
CAUTION! don't reverse direction of plug, it must plug in correct direction only
white:signal(S), red:power(+), black:ground(-)

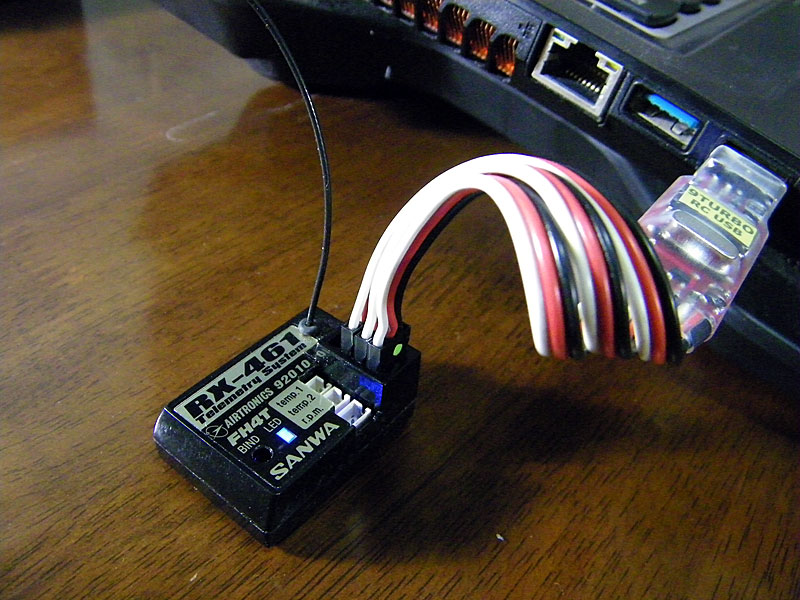

RCUSB-RX3 plug to USB port. Support both USB 2.0 , USB 3.0


RCUSB-RX3 supply 5VDC to receiver already. So, your receiver don't need external supply.

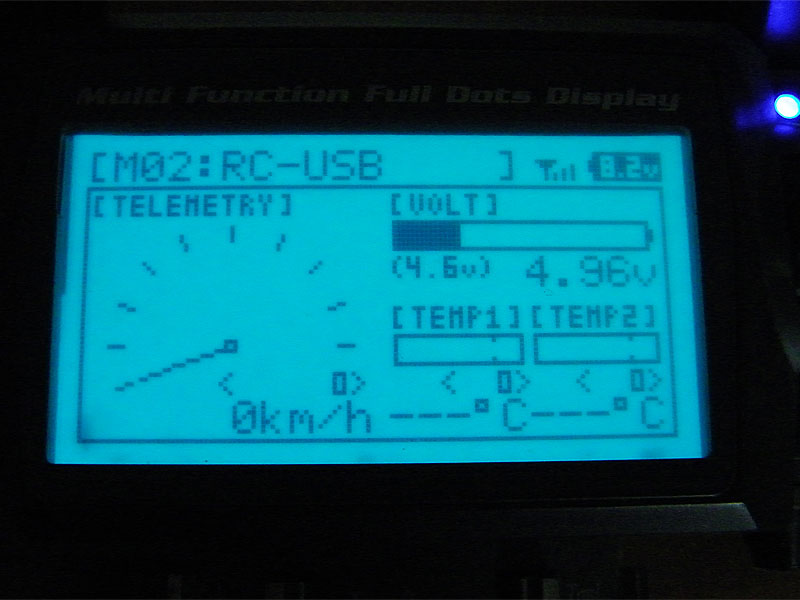

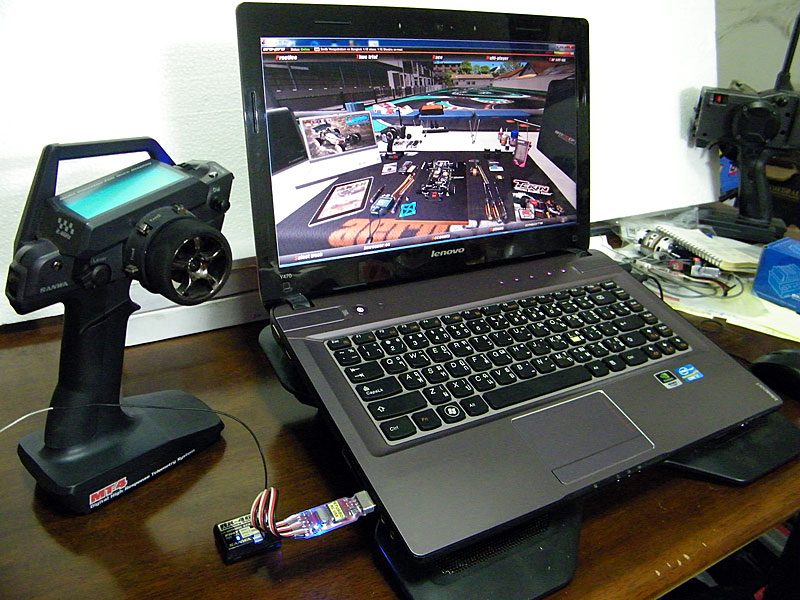

my notebook Lenovo Y470 play VRC PRO with 9TURBO RCUSB-RX3 and RX-461/Sanwa MT4 telemetry.

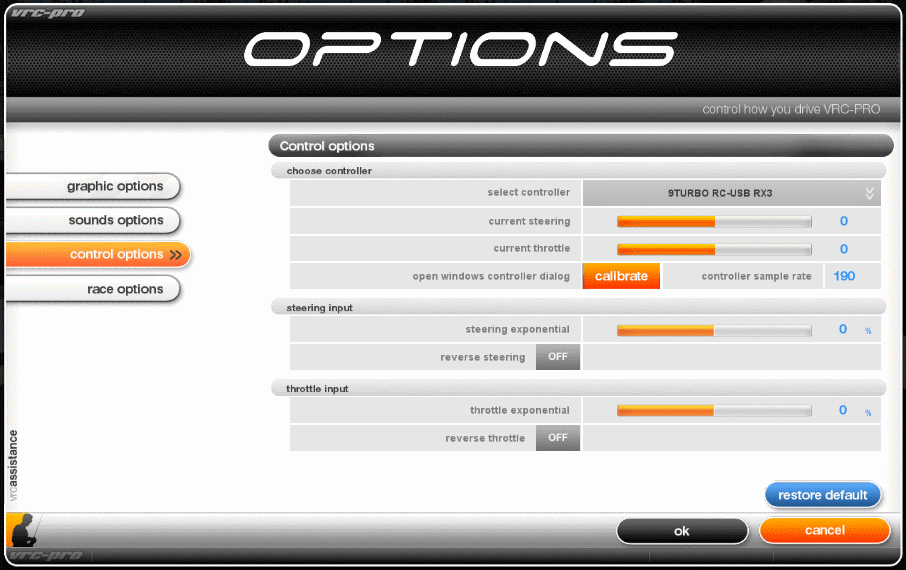

it work well with VRC PRO. for MT4+RX461+RCUSB-RX3 can do sample rate upto 190
and you can use CH3 for refuel or call marshal (use associate with JoyToKey program).

Recommend: TRANSMITTER SETTING before do joystick calibration
+ Switch on your transmitter only in "POWER" mode.
+ Transmitter can set to any mode as you want, PPM/PCM/HRS or 2.4G NOR/SHR/HRS
+ ST-EPA(ch1) set to maximum, ST-TRIM(ch1) set to 0.
+ TH-EPA(ch2) set to maximum, ST-TRIM(ch2) set to 0.
+ FAIL-SAFE set to INH or OFF.
+ ABS OFF (you can set ABS ON after joystick calibrate finished).
+ D/R and ATL set to 100% (you can adjust to your prefer,after joystick calibrate finished).
+ if your transmitter can set forward side/ reverse side ratio, should set it to FWD50/REV50 (this is not EPA, it is throttle side ratio).

Note:
RCUSB-RX3 must connect with receiver already, before plug it to USB port.
when first plug in 9TURBO RCUSB-RX3 to your computer.
windows will automatic install internal USB driver to this device.
please wait until internal USB driver installation success, then do joystick calibration.

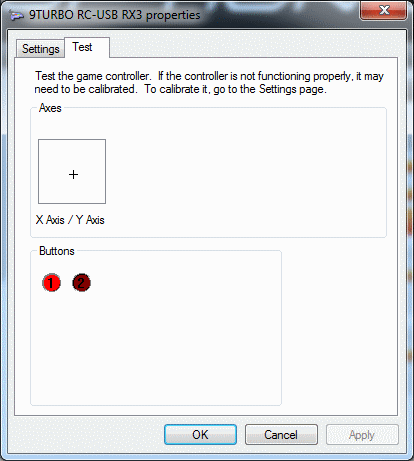

Joystick calibration => [Click Here]
